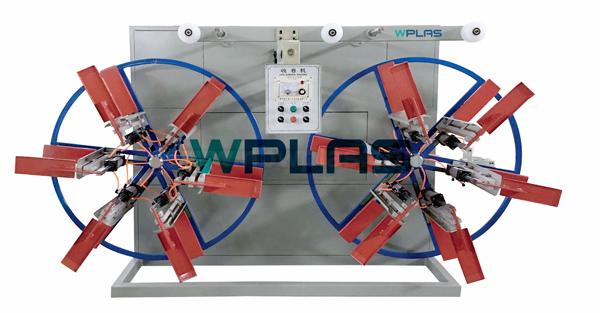

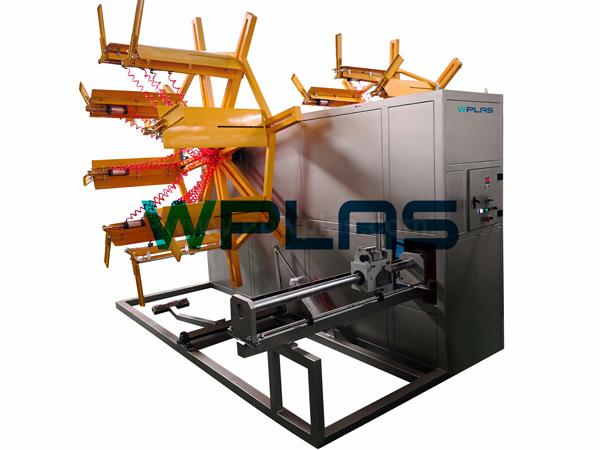

Coiler JQ Series
Coiler Details
Features:
Constant tension and line speed in coiling
Pneumatic control in coiling and uncoiling
Good coiling quality by mechanical guider (Also can equipped with servo motor as customer special request)
Machine warning device, Length-countingdevice, pressure tube device. (supplied if customer need)
Main parameter:
|
Model
|
Station
|
Pipe range(mm)
|
Coiling Diameter(mm)
|
Coiling Width
(mm)
|
Coiling Height
(mm)
|
Speed Range
(m/min)
|
Motor Torque
(N.m)
|
|
JQ1S32
|
Single station
|
16-32
|
420-800
|
200-300
|
250
|
0.5-15
|
10
|
|
JQ2S32
|
Double station
|
16-32
|
420-800
|
200-300
|
250
|
0.5-15
|
10
|
|
JQ1S63
|
Single station
|
16-63
|
520-1800
|
300-500
|
300
|
0.5-18
|
25
|
|
JQ2S63
|
Double station
|
16-63
|
520-1800
|
300-500
|
300
|
5-20
|
25
|
|
JQ2S90
|
Double station
|
20-90
|
900-1800
|
350-650
|
350
|
5-20
|
25
|
|
JQ1S110
|
Single station
|
75-100
|
1600-2300
|
300-600
|
400
|
0.5-5
|
60
|
